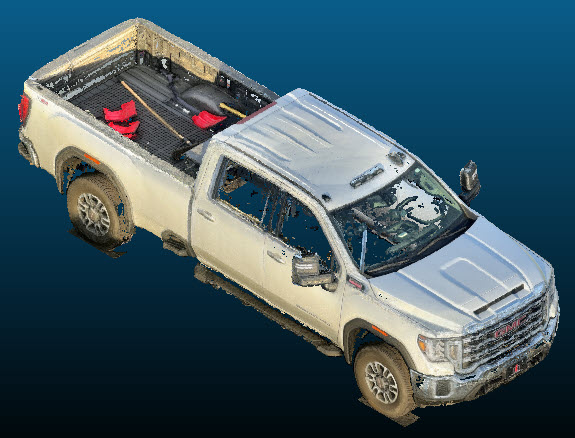

2023 GMC Sierra 3500HD vehicle Point Cloud Reference image

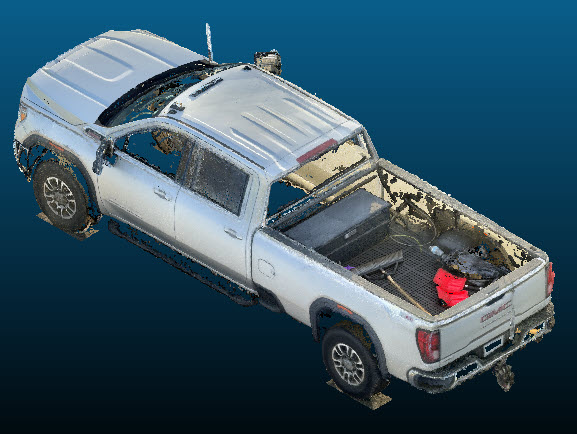

2023 GMC Sierra 3500HD vehicle Point Cloud Reference image

2020 - 2023

2023 GMC Sierra 3500 HD Crew Cab 4×4 172wb Pickup

$100.00

2023 GMC Sierra 3500 HD Crew Cab 4x4 172wb Pickup quantity

Continue Shopping

Other Models

2024 - 2025
2024 Toyota Grand Highlander – Cream
$100.00 Add to cart
2022
2022 Chevrolet 5500HD Chassis Cab – White
$100.00 Add to cart
2022 - 2023
2023 Chevrolet Bolt EUV – White
$100.00 Add to cart
2016 - 2018
2018 Audi A7 – Silver
$100.00 Add to cart

CAUTIONS & LEGAL STUFF

® Denotes a Trademark registered with the USP& TO. All of the program materials are copyrighted under U.S. and International Law.

The E57 Point Cloud model is being provided "As Is"
We are not responsible for the mis-use or mis-representation of the scan data provided, nor the information extracted based on that mis-use or mis-representation.
For most Scans, the Scan units were “inches”. Depending on your Point cloud program, the import units may be Meters, Inches, or Feet. You should be sure to check a “known” dimension, such as wheelbase, to verify what your Point Cloud units are before working with the point cloud.
The Point Cloud is provided “As Scanned”. No Scaling has been done to the point cloud. If “exact” measurements are important to you. It is suggested that you scale the Point Cloud to match published Overall Length, Wheelbase, or some other dimension that is important to you.
In our testing, most of our scans are coming in with a 0-2% error rate. In most cases, the "error" is that the scan measurement is shorter than the actual measurement.
Some manufacturers have production “problems” (eg – “deer hunter”/”deer hunting season” production or last minute design changes) which lead to dimensions on the actual vehicle which may differ significantly from published information for a specific vehicle, make, or model series.
In some cases the scanned vehicle may have had modified suspension or oversized/undersized tires added. This is also true of the subject crash vehicle you are working with. In those caes, the body dimensions should still be correct, but the height above ground may be off.
You DO have the right to bill your clients for the Point Cloud model as an expense.
You DO NOT have the right to resell the point clouds purchased from us as your own product.
