When it comes to accident reconstruction, precision and detail are incredibly important. Point cloud models, which are a recent technological advancement, having proven to be invaluable tools in this domain. Understanding how these models work, and their application in post-accident scenarios can provide insights into their growing importance in forensic investigations.
What is a Point Cloud?
A point cloud is essentially a collection of data points in space, produced by scanning the surfaces of an object or scene like devices like 3D laser scanners or through drone photogrammetry technologies. More recently, applications like devices on Apple iPhones and tables, including well-known tools like Recon-3D, have been capable of generating detailed point clouds.
When creating a point cloud, it’s crucial to consider the limitations posed by “shadows” or areas not directly visible to the scanner’s sensor. Similar to using a flashlight in the dark, any area not illuminated by the scanner’s “light” remains unscanned and invisible in the resulting model.
Why Use Point Clouds in Accident Reconstruction?
Beyond Traditional Photography
While photographs serve well for documentation, they lack the interactive dimension that point clouds offer. Point clouds not only illustrate but allow for precise measurements of various elements at the scene, such as street widths, skid marks, and vehicle damage. This capability makes point clouds an advanced tool, providing a comprehensive and measurable representation of accident scenes, allowing forensic experts to perform detailed measurements that are critical in reconstructing how an accident occurred.

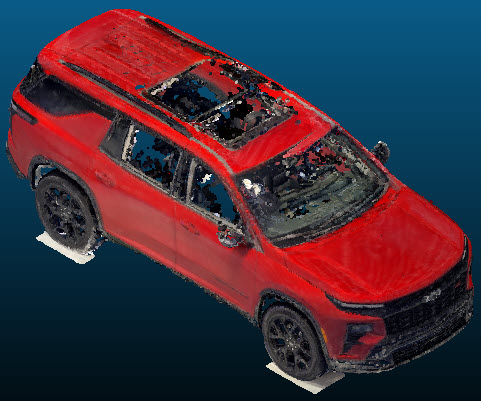

For instance, they can measure the extent of a vehicle’s crush damage by comparing the damaged vehicle’s point cloud with that of an undamaged model. They can also be imported into CAD/animation software, where they help in resolving line-of-sight issues or in reconstructing an accident’s dynamics visually and analytically. This application is particularly useful in complex accident scenes where multiple angles and factors must be assessed.
Integration with Photogrammetry
Combining point clouds with photogrammetry enhances the depth of analysis, allowing reconstruction specialists to overlay photographic data on the 3D model for a richer, more detailed investigation outcome.
Simply put, point clouds transform the way accidents are reconstructed, providing a three-dimensional, measurable, and interactive depictions of scenes that dramatically enhances the accuracy and reliability of forensic analyses.
If you’re involved in a car accident, understanding the detailed dynamics of the incident is crucial, especially when it comes to legal and insurance resolutions. Point cloud technology offers a sophisticated means of capturing and analyzing the nuances of an accident scene.
Should you find yourself in this unfortunate situation, we’re here to help. At 4N6XPRT Systems, we have sophisticated tools, including vehicle point cloud models, that can provide valuable insights. Our software is highly accurate, providing you with the information you need for court, insurance, or other purposes. Give us a call at 619-464-3478 to learn more about how we can help today!
